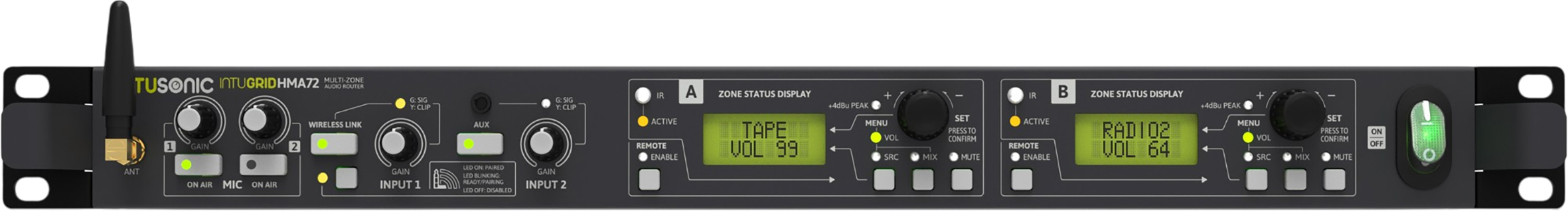

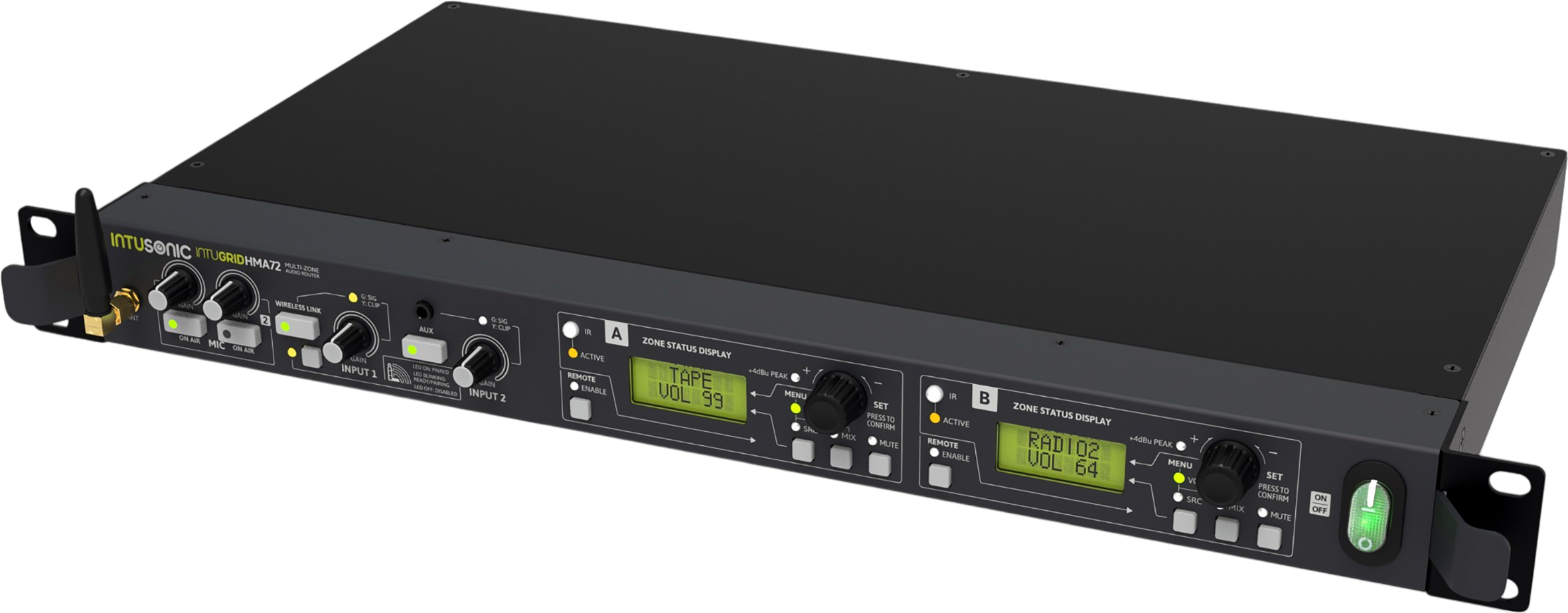

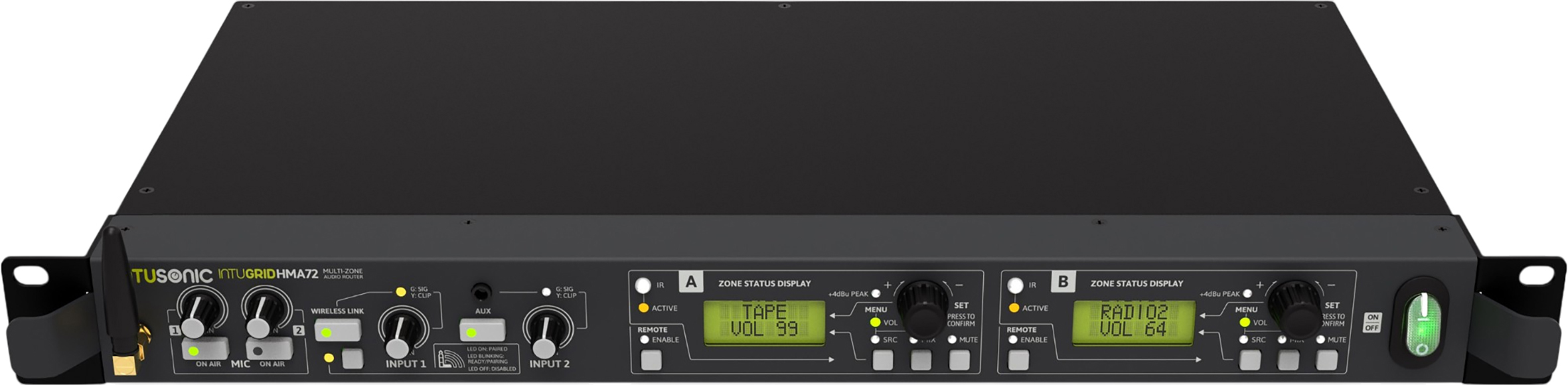

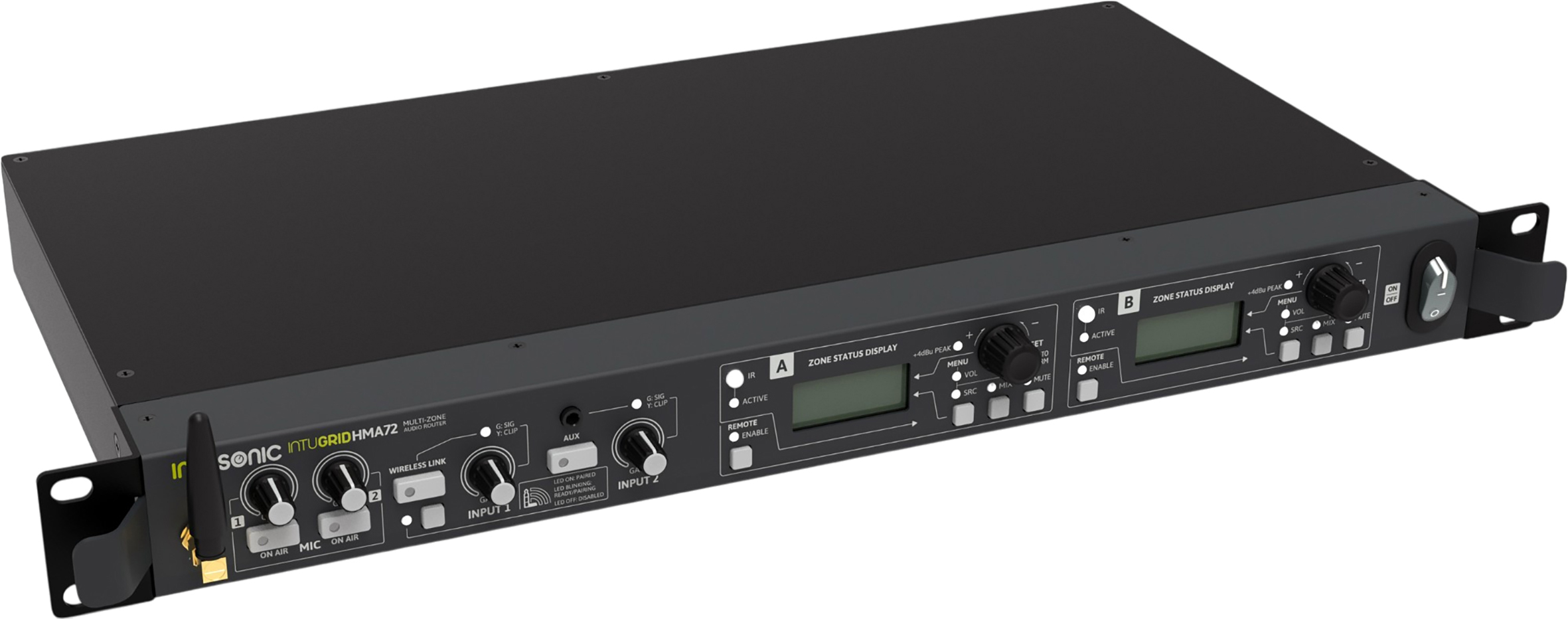

Intusonic - IntuGrid - HMA72- 2 Zone Audio Router

NTS070

4 unbalanced line stereo inputs (RCA) with input gain control
1 balanced stereo input (1/4’’ FOH input) with input gain control
1 unbalanced 3.5mm TRS stereo input on front panel
1 external mono audio source through HRE11 remote wall panel
Built-in LINKOUSTIC™ 4.2 wireless audio link
2 balanced microphone inputs on 3.5mm terminal strips, with front-panel gain control, and rear-panel phantom power switch

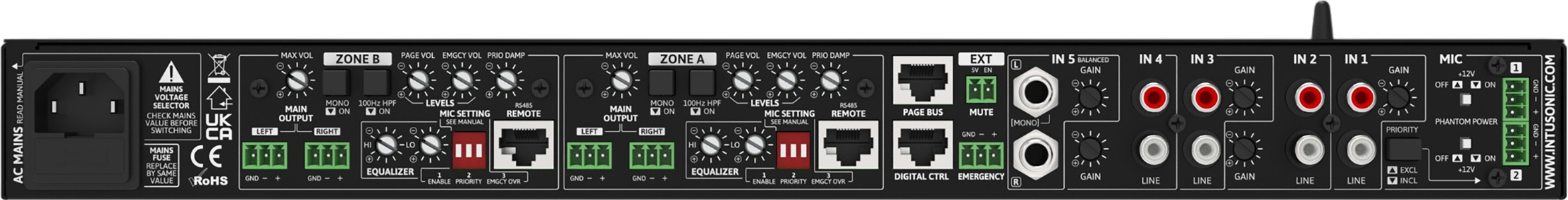

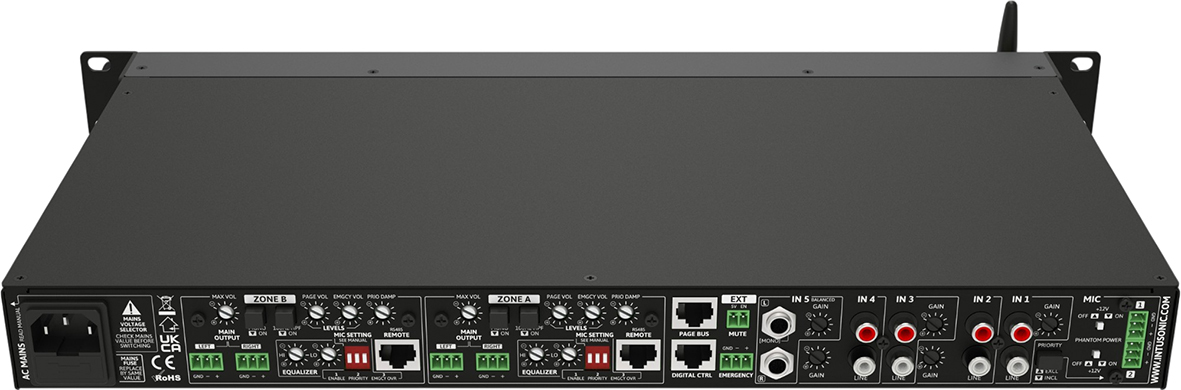

2 zone outputs on 3.5mm terminal strips; each with rear-panel mono switch, 100Hz HPF, max level control, 2-band EQ, adjustable paging/emergency volumes, adjustable priority damping, microphone incl./excl./priority, HZE11 wall remote interface
2×8 LCD display with encoder and IR remote for user zone settings
Wall panels can be disabled on main unit
Evac features: emergency input replaces master signal with emergency signal at adjustable level; output mute contact
Internal SMPS, metal case with detachable ears and handles

Product	Product Code			Add to cart
	NTS070			Login for Price

Full Product Description

The INTUGRID HMA72 is a core unit for Intusonics digitally controlled audio zoning and paging system, which is complemented by the HZE11 zone remote wall panel and the HPA41 paging station. Together they deliver a scalable audio routing system for background music and paging. The HMA72 offers two microphone inputs, 5-line inputs, a front-panel 3.5mm TRS input and a LINKOUSTIC 4.2 wireless audio link, which can be flexibly routed to its two output zones, with each of these zones controllable either by the on-board user interface, the included IR remote or a wall remote control panel. Every zone can be configured extensively to meet the application's demands, while keeping user interaction extremely simple. The HZE11 zone remote wall panel allows to remotely control all zone settings plus accepts a local audio feed. Coming soon The HPA41 paging station can page to zone groups or singular zones and provides an on-board programmable chime sound generator.
